Setting Up An Android Project Build

As the owner of a G1 I’ve played around at several times in the past with simple Android application development. The SDK tools and introductory documentation provided by Google make it easy to get started. Before embarking on a more serious project, however, I decided to figure out how to set up projects in a systematic way that allows for both development and reliable scripted builds (e.g. for continuous integration). Creating a project layout and build that works takes a few steps and tweaks, not all of which are covered in the documentation I found, so I thought I’d walk through my approach to it for those that are interested.

Goals

My goals for this project setup were as follows:

  • Support for development in Eclipse using the ADT. Although Eclipse is not my first choice of IDE, it is decent enough and compelling when combined with the ADT tooling.
  • Support for building from the command-line, with no dependency on an IDE.
  • The ability to run tests on a device (or emulator) using the SDK testing and instrumentation support.
  • Containment of all components within a single directory which can be easily versioned.

This all seems like it should be simple: the Android SDK has support for Eclipse, Ant builds, and testing. However, putting it all together can take some work, because not all the pieces play together as nicely as you might hope. First of all, although it is easy to create either an Eclipse project or an Ant one (and both cases are well documented), I would like both. I experimented with two methods: creating an Eclipse project either before or after setting up the Ant build. In my experience adding an Eclipse project to an existing Ant build proved more troublesome, and more difficult to debug if there was an issue. So I recommend starting by setting up your projects (application and test) in Eclipse first.

Setting Up the Eclipse Projects

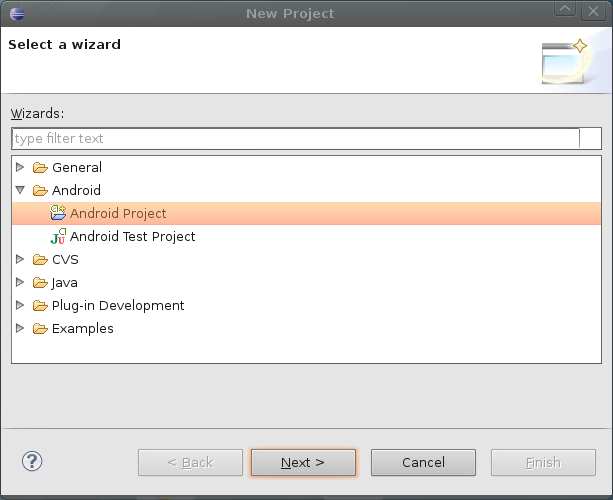

Select File > New > Project, and choose Android Project in the dialog:

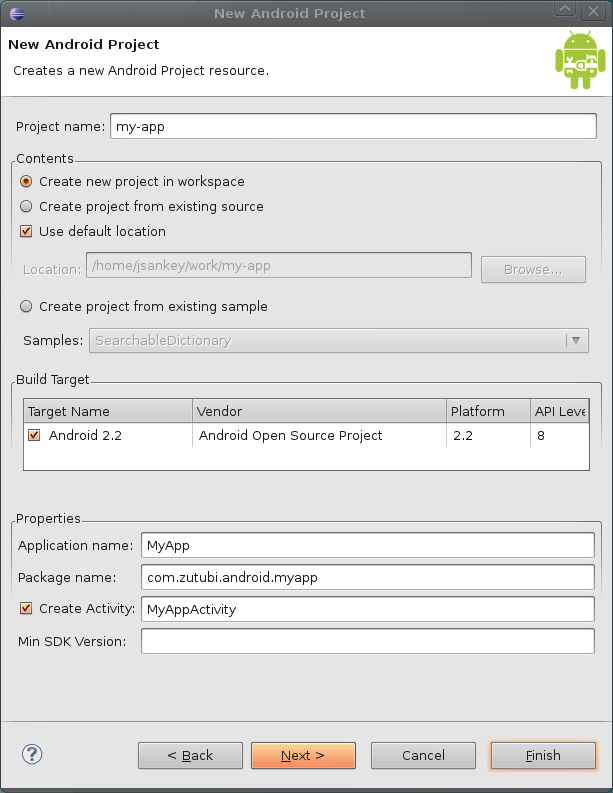

Fill in your Project, Application, Package and Activity names:

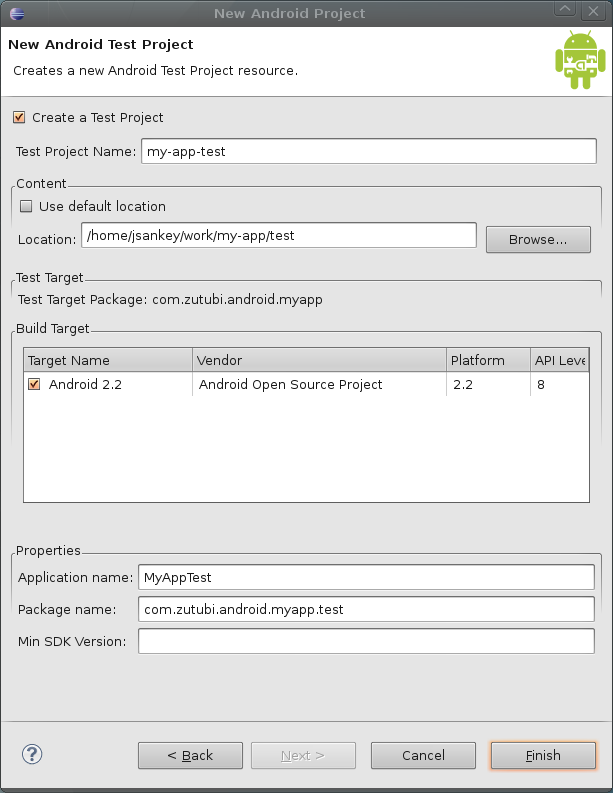

Click Next, then check the box to Create a Test Project. So that both projects live under simple, single root directory, uncheck the Use default location box, and specify the location as the “test” subdirectory of your main application’s directory:

Click Finish and the easy part is done: you should have two new projects in your workspace, with the test project nested neatly within the main one1. If you list the contents of your application’s directory, you should see something like:

jsankey@caligula:~$ ls -a1 work/my-app/
.
..
AndroidManifest.xml
assets
bin
.classpath
default.properties
gen
.project
res
.settings
src
test

Likewise, the test subdirectory should contain:

jsankey@caligula:~$ ls -a1 work/my-app/test
.
..
AndroidManifest.xml
assets
bin
.classpath
default.properties
gen
.project
res
.settings
src

Adding a Simple Test Case

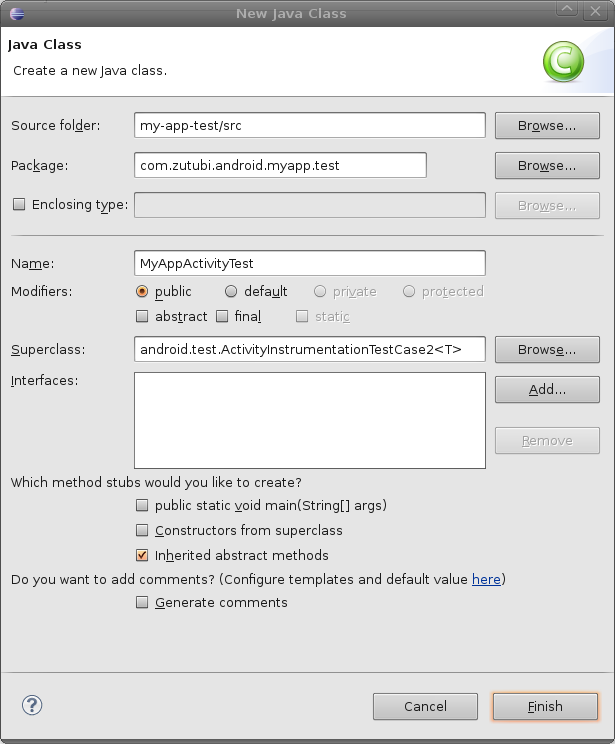

At this point, it’s worth adding a simple test case to your test project as a starting point. This will allow you to experiment with the Eclipse setup and (forthcoming) Ant builds. To do this, navigate to your test project and select File > New > Class. To actually utilise the instrumentation support in the test project, have your test class extend android.test.ActivityInstrumentationTestCase2:

You’ll need to fill in the generic type parameter for this class, add a constructor, and add a simple test case:

package com.zutubi.android.myapp.test;

import com.zutubi.android.myapp.MyAppActivity;

import android.test.ActivityInstrumentationTestCase2;

public class MyAppActivityTest extends ActivityInstrumentationTestCase2<MyAppActivity> {

	public MyAppActivityTest() {
		super("com.zutubi.android.myapp", MyAppActivity.class);
	}

	public void testSanity() {
		assertEquals(2, 1 + 1);
	}
}

To try it out, select Run > Run As > Android JUnit Test and choose (or start) a device. If the universe is in working order, the test should pass!

Adding Ant Builds

To add standard Android Ant builds to the existing projects, I used the android command line tool from the SDK. Firstly, I added a build to the main application using android update project:

jsankey@caligula:~$ cd /home/jsankey/work/my-app
jsankey@caligula:~/work/my-app$ android update project -p .
Updated local.properties
Added file ./build.xml
It seems that there are sub-projects. If you want to update them
please use the --subprojects parameter.

As the output suggests, this command adds an Ant build.xml file to your project, and a local.properties file that stores the location of the Android SDK. Notice that the tool has picked up the fact that there is a test/ subdirectory with another project in it. However, do not be tempted to take its advice to run with the –subprojects flag: this will treat your test project as a regular project. Instead, change into the test/ subdirectory and run android update test-project:

jsankey@caligula:~/work/my-app$ cd test
jsankey@caligula:~/work/my-app/test$ android update test-project -p . -m ..
Resolved location of main project to: /home/jsankey/work/my-app
Updated default.properties
Updated local.properties
Added file ./build.xml
Updated build.properties

Again, the build.xml and local.properties files are added, although this time the build file will contain test rules. Notice that the relative path to the main project is passed using the -m flag. You can see the effect of this in the created build.properties file, which sets the value of tested.project.dir.

At this point you can build the project and run the tests from the command line. First ensure that you have only one device available (e.g. one emulator running), then, in the test/ subdirectory where we left off, run ant run-tests:

jsankey@caligula:~/work/my-app/test$ ant run-tests
... clipped several lines of output ...
run-tests:
     [echo] Running tests ...
     [exec]
     [exec] com.zutubi.android.myapp.test.MyAppActivityTest:.
     [exec] Test results for InstrumentationTestRunner=.
     [exec] Time: 0.158
     [exec]
     [exec] OK (1 test)
     [exec]
     [exec]

BUILD SUCCESSFUL
Total time: 10 seconds

Excellent: now we have the build and test working with both Eclipse and Ant (or so it seems…).

Separating the Output Directories

Although on the surface our two methods of building appear to work, once you start working in this environment you will notice problems. Most likely, you will start to see errors showing up in your Eclipse build (or the Android Console) after builds from the command line. By default both the Eclipse and Ant builds use the same folders for generated source (gen/) and output (bin/), which causes this conflict. The Eclipse project does not react well to changes that occur underneath it.

To solve this problem, we can force the two different builds to use different output locations. The Ant build makes it easy to override both the generated source and output locations, using gen.dir and out.dir properties. The best place to set these properties is in the build.properties file for each of the projects:

out.dir=build
gen.dir=build/gen

Note that you will need to create build.properties for your main project (your test project should already have one). I chose to put the gen/ directory used by Ant under the output directory just to tidy things up a little.

This should be all that is required, however, thanks to a bug in the default Ant rules, if you customise the output directory your test project will not find the output of your main project to build against. To fix this, you need to edit test/build.xml, and add the line:

<property name="extensible.classpath" value="${tested.project.absolute.dir}/${out.dir}/classes"/>

just before the closing </project> tag. This assumes your test and main projects have the same out.dir, which although slightly lazy is a simpler than loading the main project’s properties to get its out.dir (and a sane assumption in my book).

You can make sure everything works by doing clean builds using Ant:

jsankey@caligula:~/work/my-app/test$ cd ..
jsankey@caligula:~/work/my-app$ ant clean
Buildfile: build.xml
    [setup] Android SDK Tools Revision 6
    [setup] Project Target: Android 2.2
    [setup] API level: 8
    [setup] WARNING: No minSdkVersion value set. Application will install on all Android versions.
    [setup] Importing rules file: platforms/android-8/ant/ant_rules_r2.xml

clean:
   [delete] Deleting directory /home/jsankey/work/my-app/build
   [delete] Deleting directory /home/jsankey/work/my-app/build.gen

BUILD SUCCESSFUL
Total time: 0 seconds
jsankey@caligula:~/work/my-app$ cd test
jsankey@caligula:~/work/my-app/test$ ant clean run-tests
... clipped several lines of output ...
run-tests:
     [echo] Running tests ...
     [exec]
     [exec] com.zutubi.android.myapp.test.MyAppActivityTest:.
     [exec] Test results for InstrumentationTestRunner=.
     [exec] Time: 0.147
     [exec]
     [exec] OK (1 test)
     [exec]
     [exec]

BUILD SUCCESSFUL
Total time: 9 seconds

Then switch back to Eclipse, try editing and saving the activity and test cases and ensure everything is happy.

Checking It In

Finally, you can check the project into your version control system. I won’t go into the tool-specific details, just make sure you check in the correct files. You should exclude:

  • The bin/, build/, and gen/ directories: as these all contain build output.
  • The files local.properties and test/local.properties: which are intended to contain properties specific to your machine (e.g. the location of the Android SDK).

Make sure you don’t forget to check in the hidden Eclipse files .classpath, .project and .settings. By structuring the projects so they live under a single top-level folder, it should be easy to add them to the version control server of your choice.

Wrap Up

That covers the basics of setting up an Android project, with tests, for both development and automated builds. Although some tweaking is required, this setup is still built upon the tooling provided by the Android SDK. I hope that this will mean it is easy to take advantage of new capabilities when new SDK versions are released (which happens pretty frequently at the moment!).


1 For reasons unknown to me, when my projects were first created they had build errors. A clean rebuild magically fixed the problem.

ShrinkSafe via Ant

The development of Pulse 2.2 has seen a steady increase in the amount of JavaScript we are using to drive our web front end. To help maintain a snappy user experience, we have started to look at products / packages to reduce the size of our JavaScript. The first such package that I encountered was ShrinkSafe, a part of the Dojo Toolkit.

ShrinkSafe is packaged as a jar file, and with the js.jar (Rhino) on the classpath, can be run as follows:

java -jar shrinksafe.jar infile.js > outfile.js

To run this via ant, you could do something like:

<java jar="shrinksafe.jar" fork="true" output="outfile.js">
    <arg value="infile.js"/>
    <classpath>
        <pathelement location="js.jar"/>
    </classpath>
</java>

Whilst effective, this does become a little verbose when you need to apply it to multiple JavaScript files and does not support a dynamic set of files. Since the Pulse build uses ant and has a growing set of JavaScript files, I created an ant task to drive ShrinkSafe, the source of which is available via github.

So now we can run shrinksafe as follows:

<taskdef name="shrinksafe" classname="com.zutubi.ant.shrinksafe.ShrinksafeTask"/>
<shrinksafe outputDir="${out.dir}" sourceDir="${src.dir}">
    <include name="**/*.js"/>
</shrinksafe>

We can also append a suffix to the processed files for when we version them.

Pulse Continuous Integration Server 2.2 Beta!

Great news: today the latest incarnation of Pulse, version 2.2, went beta! In this release we’ve focused primarily on usability, largely in the build reporting UI. A new build navigation widget allows you to easily step forwards and backwards in your build history – while sticking to the same build tab. All of the build tabs themselves have been overhauled with new styling and layout. Here’s a sneak peak at the artifacts tab, for example:

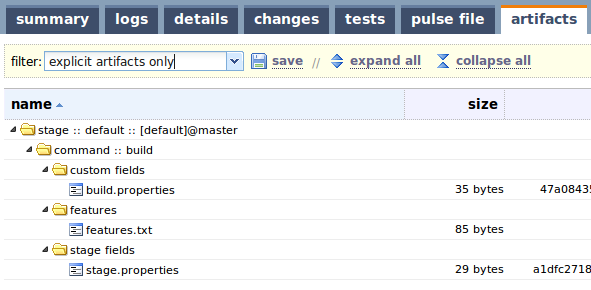

Artifacts Tab

Artifacts Tab

It not only shows additional information, with greater clarity, but also allows you to sort and filter artifacts so you can find the file you are after. Other UI changes go beyond style too – for example the new build summary tab shows related links and featured artifacts for the build. More information, and screenshots, are available on the new in 2.2 page.

We’ve also squeezed in some less obvious updates, such as:

  • The much-requested ability to move projects and agents in the template hierarchy.
  • Convenient navigation up and down the template hierarchy.
  • The ability to subscribe to projects by label.
  • An option to use subversion exports for smaller and faster builds.
  • Improved cleanup of persistent working directories (when requesting a clean build).
  • Performance improvements for large configuration sets.

The first beta build, Pulse 2.2.0, is available for download now. We’d love you to give it a spin and let us know what you think!
